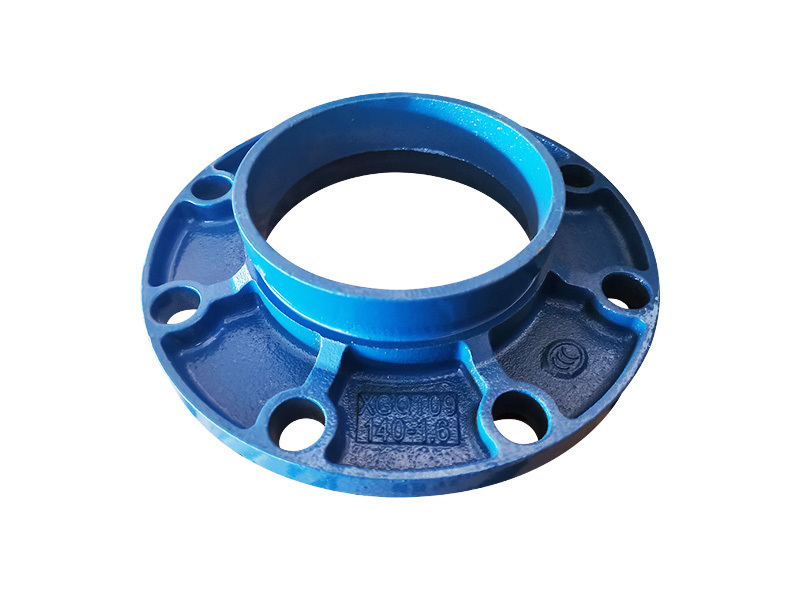

Flange XGQT09 140-1.6

This product is suitable for groove type pipe connection systems, and can be used when meeting flange type equipment interfaces. It can be matched with flange equipment without welding or threading (note: there are different nominal pressure levels). This product has stronger pressure resistance than flange pipe clamps.

Anahtar kelime：

Kategori：

Hotline：

Flange XGQT09 140-1.6

Brief introduction
This product is suitable for groove type pipe connection systems, and can be used when meeting flange type equipment interfaces. It can be matched with flange equipment without welding or threading (note: there are different nominal pressure levels). This product has stronger pressure resistance than flange pipe clamps.
Standard configuration
QT450-12 (exterior EP powder), prefabricated groove and flange surface
Basic dimensions

Nominal diameter mm	D mm	Nominal pressure MPa	XGOT01 90 ° Elbow	XGOT02 45° Elbow	XGQTO3 Tee	XGOTO5 Cross	XGOTO6 Blind film	XGOTO9 Flange
Nominal diameter mm	D mm	Nominal pressure MPa	L	L	L	L	H	Do	L	n-φ
50	60	2.5	84	55	84	84	25	125	65	4-φ18
65	76		90	60	90	90	25	145	65	4-φ18
80	89		94	65	94	94	25	160	65	8-φ18
100	108		104	80	104	104	25	180	70	8-φ18
100	114		104	80	104	104	25	180	70	8-φ18
125	133		122	90	122	122	25	210	70	8-φ18
125	140		122	90	122	122	25	210	70	8-φ18
150	159		142	95	142	142	25	240	70	8-φ22
150	165		142	95	142	142	25	240	70	8-φ22
200	219		179	124	179	179	32	295	80	12-φ22
250	273		215	144	215	215	32	355	85	12-φ25
300	325		245	147	245	245	32	410	90	12-φ25
