Mechanical tee (groove type) XGQT3

A pipe fitting that connects a branch pipe using a bolt connection method, and the outlet of the branch pipe is of a groove type structure. Connect the branch pipe directly from the main pipe without welding. Used for groove type connection between the main pipe and different diameters on one side (smaller than the main pipe diameter) in the pipeline. This connection method can achieve the same effect as the groove reducing tee, but is more economical and convenient.

Anahtar kelime：

Kategori：

Mehanik Tee (Groove Type)

Hotline：

Mechanical tee (groove type) XGQT3

Brief introduction
A pipe fitting that connects a branch pipe using a bolt connection method, and the outlet of the branch pipe is of a groove type structure. Connect the branch pipe directly from the main pipe without welding. Used for groove type connection between the main pipe and different diameters on one side (smaller than the main pipe diameter) in the pipeline. This connection method can achieve the same effect as the groove reducing tee, but is more economical and convenient.
Standard configuration
QT450-12 (exterior EP powder)/EPDM rubber ring/bolt Grade 8.8, 6g/nut Grade 8, 6H
Hole size

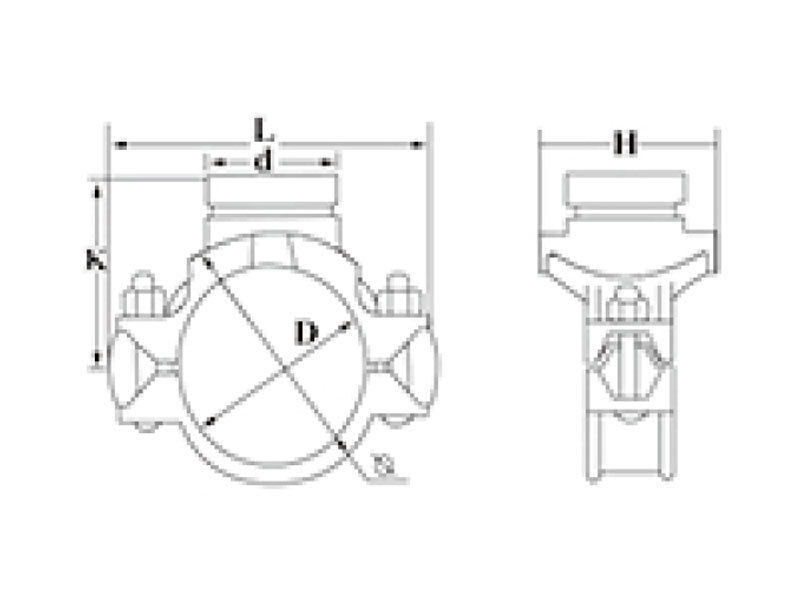

Nominal diameter mm	D×d mm	Bolt size	Nominal pressure MPa	Maximum overall dimension mm
				K	φ	L	H
100×50	108×60	2-M12×75	2.5	110	134	185	110
100×65	108×76
100×65	114×60				140
100×65	114×76
125×50	133×60			115	157	215	125
125×65	133×76
125×80	133×89
125×50	140×60				164	220
125×65	140×76
150×50	140×89
150×65	159×60			135	187	242	135
125×80	159×76
150×80	159×89
150×100	159×108
150×100	159×114
150×50	165×60				193	245
150×65	165×76
150×80	165×89
150×100	165×108
150×50	165×114
150×65	168×60				196	250
150×100	168×76
150×80	168×89
150×100	168×108
150×100	168×114
200×50	219×60	2-M16×100		155	250	300	165
200×65	219×76
200×80	219×89
200×100	219×108
200×100	219×114
200×125	219×133
200×125	219×140
