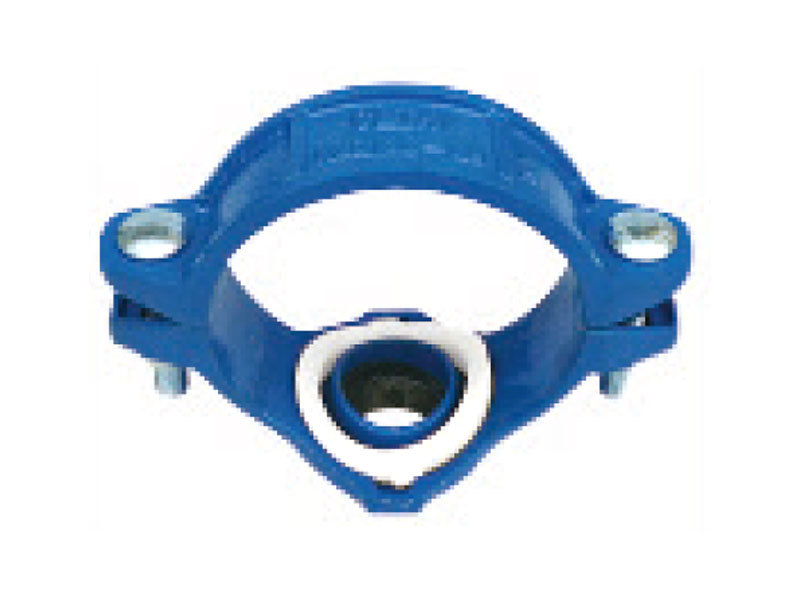

A pipe fitting that uses a bolted connection to connect a branch pipe, and the outlet of the branch pipe is of an internal threaded structure. Connect the branch pipe directly from the main pipe without welding. Used for threaded connection between branch pipes with different diameters. This connection method can achieve the same effect as a threaded reducing tee, but is more economical and convenient.

Anahtar kelime：

Mechanical tee

Kategori：

Hotline：

Mechanical tee

Brief introduction
A pipe fitting that uses a bolted connection to connect a branch pipe, and the outlet of the branch pipe is of an internal threaded structure. Connect the branch pipe directly from the main pipe without welding. Used for threaded connection between branch pipes with different diameters. This connection method can achieve the same effect as a threaded reducing tee, but is more economical and convenient.
Standard configuration
QT450-12 (exterior EP powder)/EPDM rubber ring/bolt Grade 8.8, 6g/nut Grade 8, 6H
Hole size

Nominal diameter mm	D×Gmm	Bolt size	Maximum overall dimension mm
Nominal diameter mm	D×Gmm	Bolt size	K	φ	L	H
65×25s	76×33	2-M12×75	86	100	154	87
65×32s	76×42
65×40s	76×48
80×25s	89×33		92	114	165	92
80×32s	89×42
80×40s	89×48
80×50s	89×60
100×25s	108×33		110	134	185	105
100×32s	108×42
100×40s	108×48
100×50s	108×60
100×65s	108×76
100×25s	114×33			150
100×32s	114×42
100×40s	114×48
100×50s	114×60
100×65s	114×76
100×80s	114×89
125×25s	133×33		125	157	215	125
125×32s	133×42
125×40s	133×48
125×50s	133×60
125×65s	133×76
125×80s	133×89
125×25s	140×33			164	220
125×32s	140×42
125×40s	140×48
125×50s	140×60
125×65s	140×76
125×80s	140×89
150×25s	159×33		140	188	245	126
150×32s	159×42
150×40s	159×48
150×50s	159×60					140
150×65s	159×76
150×80s	159×89
150×25s	165×33			193	245	126
150×32s	165×42
150×40s	165×48
150×50s	165×60					140
150×65s	165×76
150×80s	165×89
150×100s	165×114
200×25s	219×33	2-M16×110	155	250	300	155
200×32s	219×42
200×40s	219×48
200×50s	219×60					165
200×65s	219×76
200×80s	219×89
200×100s	219×114
