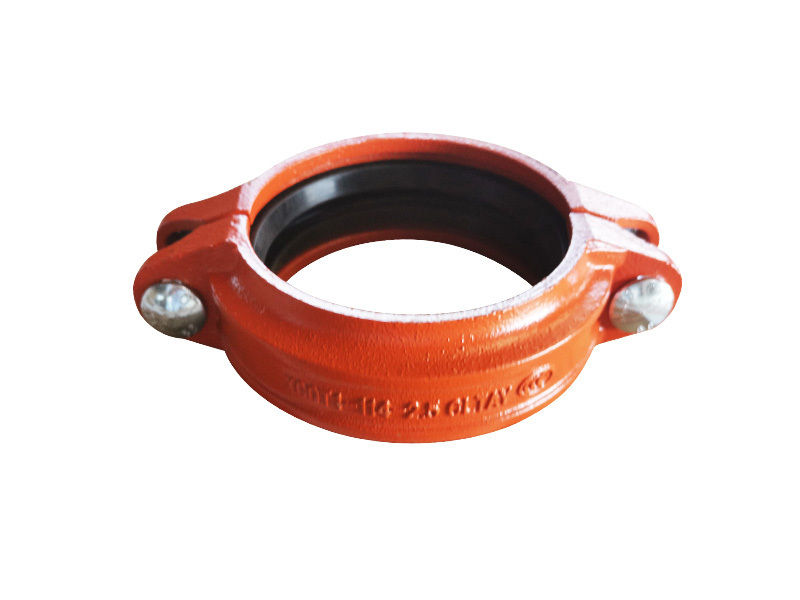

Rigid clamp XGQT1 114-2.5

A quick assembly joint consisting of split type clamps, rubber sealing rings, and fasteners is used. At the joint, adjacent pipe ends are not allowed to have relative angular displacement and axial displacement of split type clamps.

Anahtar kelime：

Kategori：

Hotline：

Rigid clamp XGQT1 114-2.5

Brief introduction
A quick assembly joint consisting of split type clamps, rubber sealing rings, and fasteners is used. At the joint, adjacent pipe ends are not allowed to have relative angular displacement and axial displacement of split type clamps.
Standard configuration
QT450-12 (exterior EP powder)/EPDM rubber ring/bolt Grade 8.8, 6g/nut Grade 8, 6H
Design Features
The internal and external layers of male and female connectors, socket and socket designs, and the use of the gap between the male and female connectors and the engagement of pipes and joints to meet the rigidity requirements, not only inherits the traditional characteristics of the groove type connection method, but also has its own unique advantages.
Due to the improved interface structure, it is not easy to cause lateral and oblique bending of the sealing ring, and the positioning of the sealing ring is more accurate, avoiding abnormal compression and destructive pressure loss of the sealing ring, increasing the sealing performance, and improving the overall service life of the joint.
Hole size

Nominal diameter mm	Outer diameter of steel pipe mm	Nominal pressure Mpa	Bolt size	Maximum overall dimension mm
Nominal diameter mm	Outer diameter of steel pipe mm	Nominal pressure Mpa	Bolt size	φ	L	H
50	60	2.5	2-M10×55	92	124	47
65	76			110	140
80	89			122	154
100	108		2-M10×65	148	178	54
100	114		2-M10×65	154	186
125	133		2-M12×70	173	220
125	140			180	216
150	159			200	238
150	165		2-M12×75	205	244
200	219		2-M12×75	266	345
250	273	16	3-M16×100	330	452	68
300	325	16	3-M20×110	382	505	68
